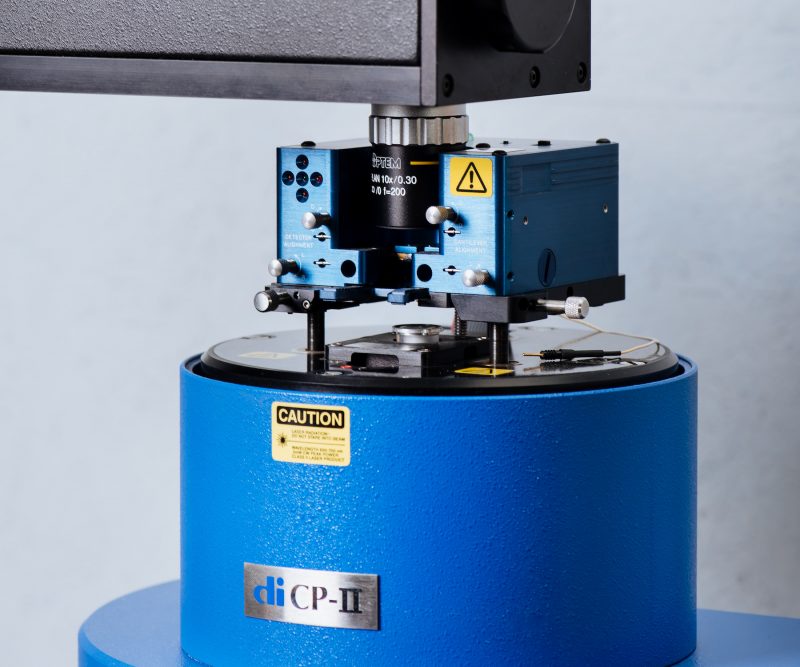

Scanning probe microscope (table top)

Imaging of surfaces using different SPM techniques

• Scanning area 100x100x7.5 µm
• Sample size: up to 10×10 mm
• Scanning by sample
• Manual XY stage 8×8 mm
• Motorized Z stage
• Optical microscope (20x) for tip and sample view

SPM Techniques:

• contact mode, tapping mode, force modulation mode
• scanning tunneling microscopy (STM)
• magnetic force microscopy (MFM)
• nanolithography by mechanical scratch
