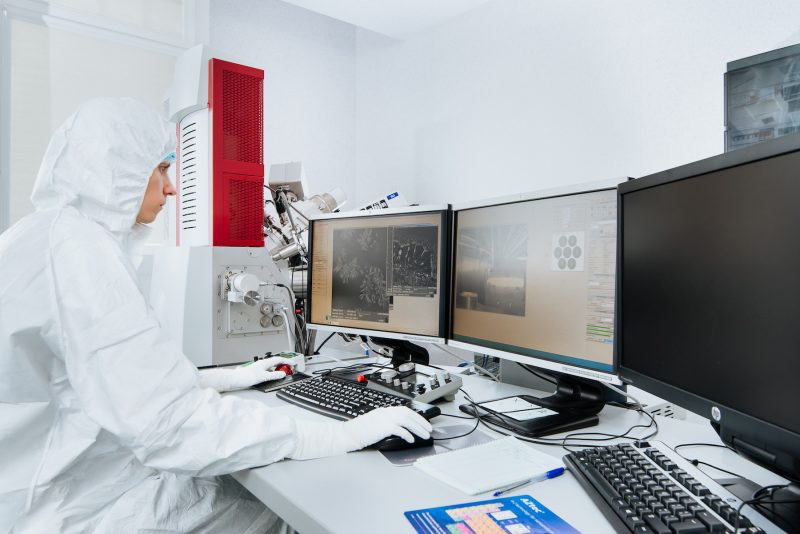

Scanning electron microscope SEM-FIB

Scanning electron microscope SEM-FIB

Scanning electron microscope SEM-FIB
Manufacturer
Tescan
Model
Lyra
Category
Microscopy
Application

Applied physics, material science

Description
A fully PC controlled SEM with Schottky field emission cathode in combination with gallium focused ion beam (FIB) column and with gas injection system (GIS):
  • Accelerating voltage 200 V to 30 kV
  • Probe current 2 pA to 200 nA
  • Resolution in high vacuum mode 1.2 nm at 30 kV, 4.5 nm at 1 kV
  • Resolution BSE: 2 nm at 30 kV
  • Maximum field of view 6 mm at WD 9 mm, 17 mm at WD 30 mm

Electron optics working modes:
  • resolution: high-resolution mode
  • depth: sets the column up in a mode that enhances depth of focus
  • field: optimizes the column to provide a large non-distorted field of view
  • gallium liquid metal ion source 0.5 kV to 30 kV
  • probe current 1 pA to 40 nA
  • SEM-FIB angle: 55°

Chamber Vacuum:
  • high vacuum mode: < 9×10-3 Pa
  • low vacuum mode: 7 – 500 Pa



Other:

  • micromanipulator for TEM lamella preparation
  • EDX Oxford X-Max 50 mm2 detector, AZtec software
